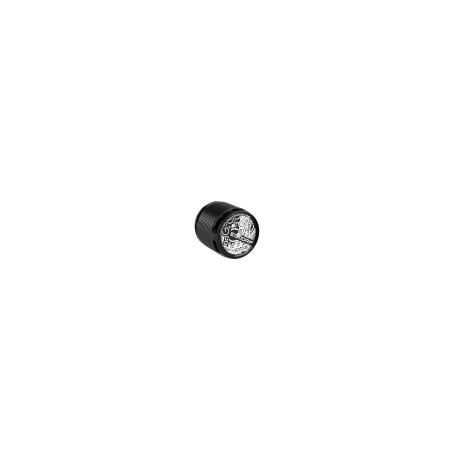

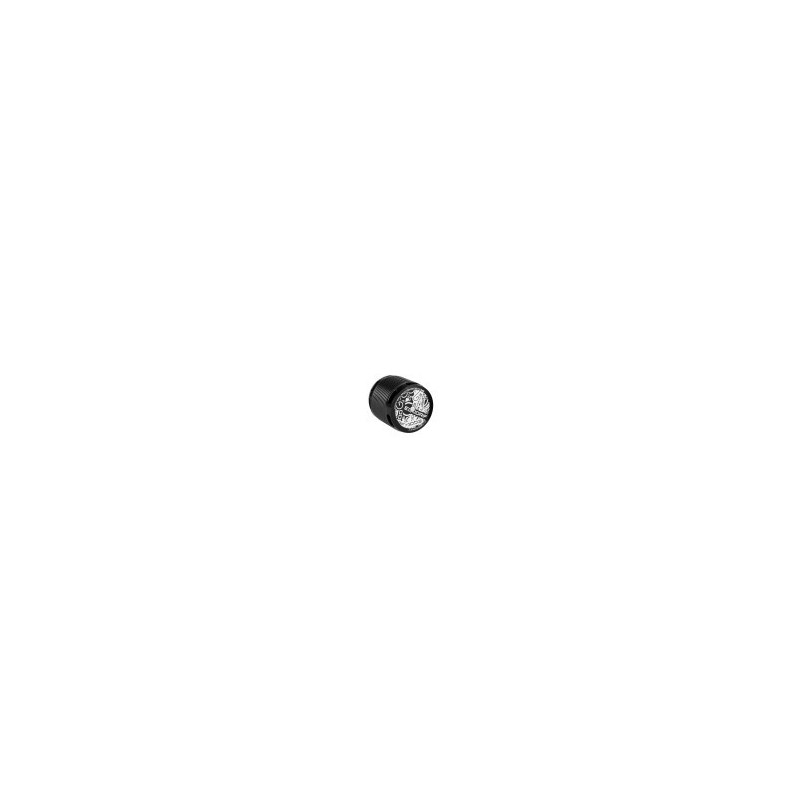

Egodrift Tengu 3220HS / 960kV (6S)
€ 169,00
Inclusief belasting
Tengu 3220HS / 960kV (6S)
EGODRIFT Tengu high-performance brushless motors for RC heli are the result of one year of testing and development. The 3220HS comes with a kV rating of 960kV for 6S LiPo batteries and is the perfect choice for your 380 sized SAB Goblin, Oxy4Max or scale helicopter model.
Like all models within the Tengu series, the top of the can features the iconic and heat-resistant EGODRIFT Stickerbomb print, to add the finishing touch to your 380 class heli build.
Each motor comes with mounting screws and 3 pairs of gold bullet connectors.
Specifications
- Manufacturer: EGODRIFT
- Stator size: 3220
- Motor configuration: 12N10P
- Motor weight: 177g
- Base Colour: Black
- Wire colour: Copper
- Motor wire type: High temperature copper wire
- Motor shaft: Hardened Steel
- Shaft diameter: 5.0 mm
- LiPo cells: 6S
- Motor kV: 960 kV
- Stator diameter: 32 mm
- Stator height: 20 mm
- Stator lamination: 0.15 mm (+)
- Body Length: 40.5mm (1.59 inch)
- Diameter: 40.5mm (1.59 inch)
- Screw hole diameter: 3,0 mm
- Motor hole pattern: 25mm
- Idle current: 3.1A
- Maximum Current: 60A (Peak: 70W / 2 seconds)
- Maximum Power: 1680W (Peak: 2000W / 2 seconds)
- Internal resistance: 22.1 mOhm
- Connection: Wire / Gold plated plugs
- Designer: Yutao Zou
