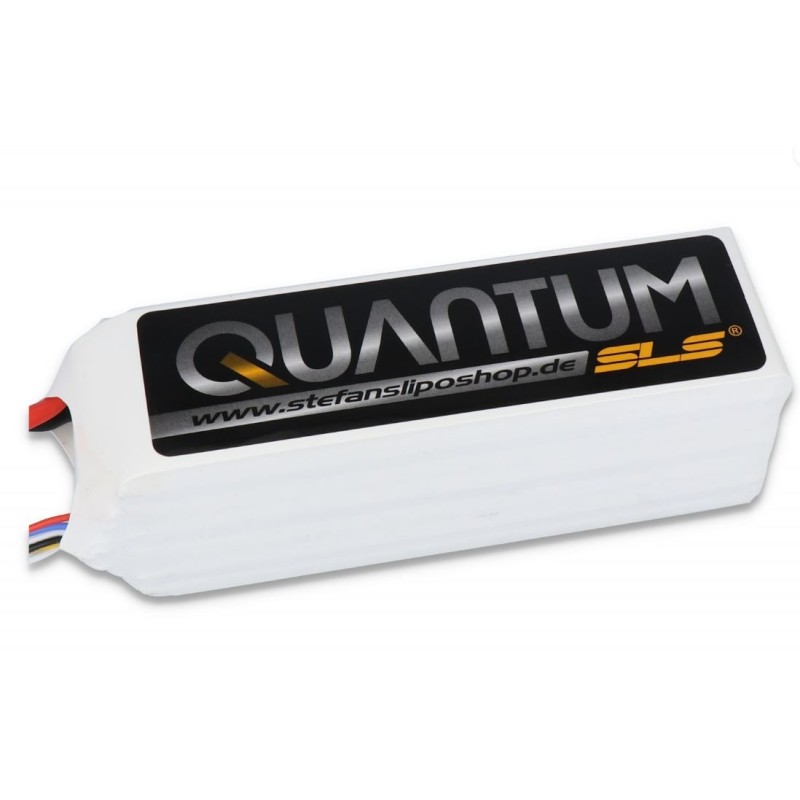

SLS QUANTUM 3000MAH 6S1P 22,2V 65C/130C

96,80 €
TTC

SLS QUANTUM 3000MAH 6S1P 22,2V 65C/130C

Quantité
72h Stock

SLS QUANTUM 3000MAH 6S1P 22,2V 65C/130C

Technical Data:

  • Voltage: 22,2V
  • Configuration: 6S1P
  • Capacity: 3000mAh
  • Continuous Discharge: max. 65C* (195A)
  • Burst Discharge: max. 130C (390A)
  • Charge: max. 10C (30A)
  • Weight: approx. 490 Gramm (including Cable and Plug)
  • Dimension: approx. LxWxH 141 x 44 x 39mm
  • Balancer Plug: XH
  • Discharge Plug: XT90
  • Main Discharge Cable: AWG10
  • Length of Main Discharge Cable: 15cm

Note:

(*) The cell chemistry is designed for 65C. The thickness and width of the radial high-current arresters and the contacts of the high-current cables are technically limited. So our recommendation: 65C no longer than 20 seconds.

WEIGHT

Weight 490 Gramm

DIMENSIONS
HORIZONTAL INSTALLATION:
Lipo Einbau liegend
Length: 141,00mm
Width: 44,00mm
Height: 39,00mm
ROTATED 90° WHEN INSTALLED:
Lipo Einbau gedreht
Length: 141,00mm
Width: 39,00mm
Height: 44,00mm
SLSQ30006165
