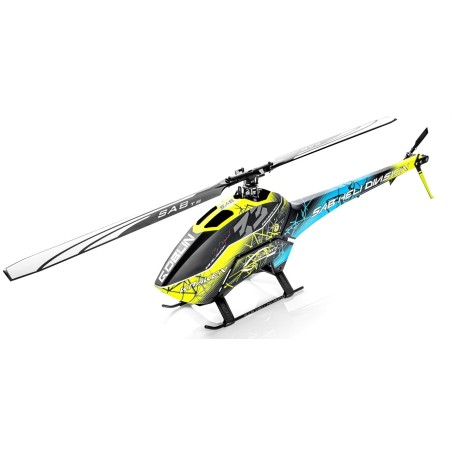

GOBLIN KRAKEN 580

GOBLIN KRAKEN 580

TECHNICAL SPECITICATIONS

• AIRFRAME weight: 1760gr ( with blades, no battery, no electronics )

• Main blade length: 550mm to 600mm

• Tail blade length: 95 to 105 mm

• Main rotor diameter: 1270 mm (with 570 mm blades included)

• Tail rotor diameter: 260 mm (with 95 mm tail blades included)

• Cyclic Servos: mini size 35 mm (standard size 40mm option )

• Tail Servo: standard size 40mm.

• Main Rotor ratio : 11.5 to 8.6 :1 ( 22T included: 9.4:1)

• Tail Rotor ratio : 5.3-4.9:1 ( 23T included: 4.9:1 )

• Typical motor : 4025 series, 6S 1000-1200 Kv, 12S 500-600 Kv

• Typical speed controller: 6S 120-140 A, 12S 100-130A

• Battery size: 6S 5000/5800 mAh, 12S 2600/3200 mAh.
