KST X20-1035 V2 TAIL 550-800

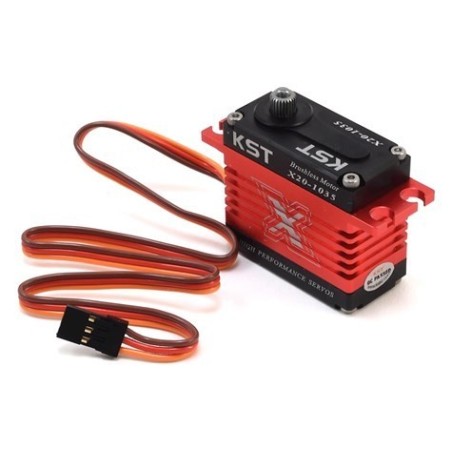

KST X20-1035 V2 HV Brushless Servo -

The KST X20 V2.0 X20-1035 Tail Servo. The X20 Servos feature a brushless motor, full CNC aluminum case, and a complete set of Titanium gears through out each servo. The tail servo offers 166oz/in of torque at a blistering fast 0.03 speed at 8.4V

The developers at KST ensured nothing but the best components were utilized during construction of this servo, components as large as motors and gears, materials for the servo case,and small components such as the PCB board driving the motor. EMF currents in common DC voltage applications can generate large EMF spikes under operation, which can wreak havoc on other connected electronics. X20 servos feature a PCB board which minimizes EMF spikes, protecting other electronics from having to filter out the noise.

Features:

• Standard size aluminum case
• Low EMF design
• Full metal gears
• Dual ball bearings
• HV compatible

Specifications:
Operating Voltage: 6-8.4V
Size: 40.5x20x38mm (width x height x thickness)
Torque (Tail): 8.5kg.cm @ 6.0V; 12kg.cm @ 8.4V | 117oz/in @ 6.0V; 166oz/in@ 8.4V
Speed (Tail): 0.04sec/60° @ 6.0V; 0.03sec/60° @ 8.4V
Weight: 75g
Working Frequency (Tail): 760us/560Hz

Motor: Brushless
Ball Bearing: 2BB
