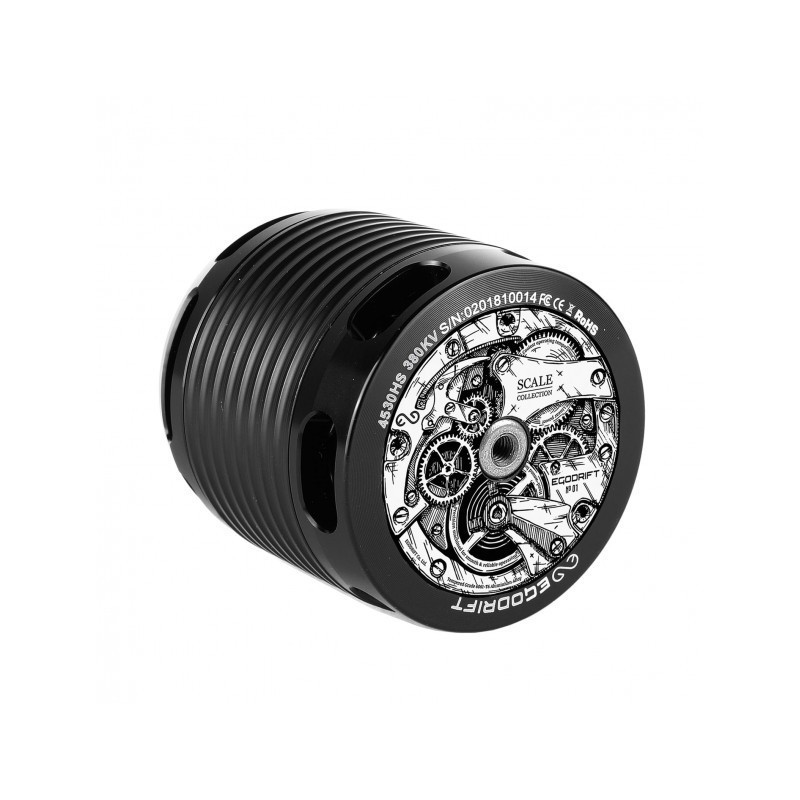

Egodrift SCALE COLLECTION 4530HS / 380KV (12-14S)

399,00 €
Bruttopreis

Egodrift SCALE COLLECTION 4530HS / 380KV (12-14S)

Menge
Nur noch wenige Teile verfügbar

Egodrift SCALE COLLECTION 4530HS / 380KV (12-14S)

SPECIFICATIONS

  • Manufacturer: EGODRIFT
  • Stator size: 4530
  • Motor configuration: 12N10P
  • Motor weight: 536g (18.91oz)
  • Wire colour: Copper
  • Motor wire type: High temperature copper wire
  • Motor wire: 1.12mm
  • Motor kV: 380 kV
  • Motor shaft: Hardened Steel
  • Shaft diameter: 6.0 mm
  • External shaft length (mm): 55 mm (Align, Mikado, Gaui, ...)
  • Mounting hole pattern: 4xM4(30)
  • Laser Design: Scale Collection
  • LiPo cells: 12S, 14S
  • Stator diameter: 45 mm
  • Stator height: 30 mm
  • Stator lamination: 0.15 mm (+)
  • Body Length: 60.58mm (2.39 inch)
  • Diameter: 56.40 mm (2.188")
  • Idle current: 2.2A
  • Maximum Current: 91A (Peak: 182A / 2 seconds)
  • Maximum Power: 4550W (Peak: 9100W / 2 seconds)
  • Internal resistance: 38 mOhm
  • Connection: Wire / Gold plated plugs
  • Designer: Yutao ZouVincent Offenbeck
