DESCRIPTION

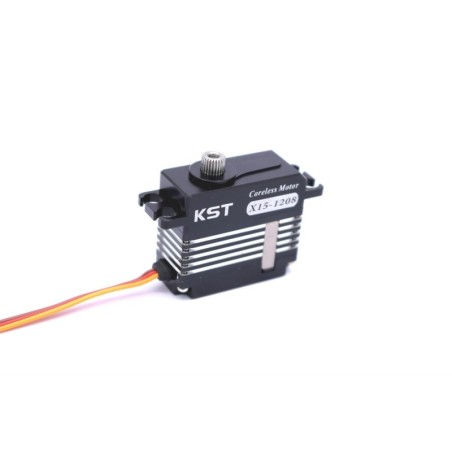

KST X15-1208 Technical details:

• Operating voltage (max.) [V]: 6.0-8.4
• Torque : 9. 8kg/cm@ 6.0V // 12.0kg/cm@ 7.4V // 13.5kg/cm@ 8.4V
• Speed : 0.10 sec/60@ 6.0V // 0.08 sec/60@ 7.4V // 0.07 sec/60@ 8.4V
• Width [mm]: 15.0
• Length [mm]: 35.5
• Height [mm]: 32.5
• Weight [g]: 40.0
• Motor type: Coreless
• Frequency range: 1520us/333Hz, 900us-2100us
• Gear type: Metal
• Bearing type: 2BB
• Output shaft type: H25T/3F
• Servo type: Mini
• Electronics: Digital
• Position sensor: Potentiometer
• Waterproof: No
• Manufacturer: KST
