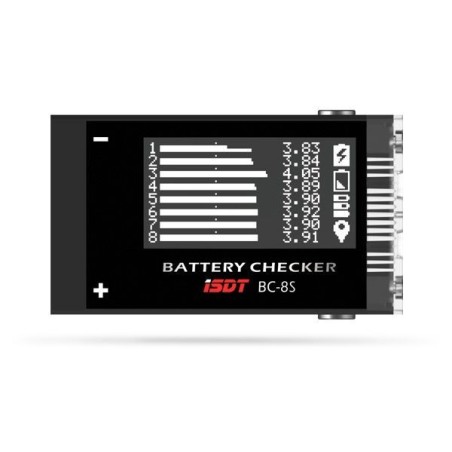

ISDT Battery Checker BC-8S

Name: ISDT Battery Checker BC-8S
Brand: InfoStep RC SERVICE
SKU: 363
Price: 19.9 EUR
Availability: OutOfStock

19,90 €

Bruttopreis

Battery Checker BC-8S

Menge

Nicht auf Lager

Beschreibung
Artikeldetails

Battery Checker BC-8S

Designed for LiPo, LiHv, LiFe, LiIon batteries, highly effectively manage your different batteries with just our BC-8s.

Patent Automatic alarm function

Built-in four bright LED lights and two 85dB buzzer, with sound and light tracking signal, you will never lose contact with your UAV.

All Status Display

3 kinds of working mode, Easy to switch as you wish

Super Portability

You will not find a similar product like BC-8S with that mini size in the market.

Voltage Display Function

Voltage recording function Histogram can tell you the voltage change during usage of battery. The upper part tells you the lowest voltage recorded during usage. The lower part shows you current voltage. For on-board measurement, it’s recommended to use this mode, after your flight by checking histogram, it can easily tell how well is your battery.

Eng-Chi Menu

Support English&Chinese

The input port supports the detection of up to 8s battery

Support the detection of LiPo, LiHv, LiFe, LiIon batteries, suitable for batteries with JST XH 2.54 balance port, connect the balance port start from “BAT-“

ARM 32bit Hi-speed CPU

Appearance&structure

Description

Dimension	54mm x 30mm x 9mm
Weight:	15g
Lowest function voltage	2.6V（1S battery）
Voltage measurement range	1.0~5.0V
Supported Batt. Type	LiPo, LiHv, LiFe, LiIon
Balance Cells	1~8S
Voltage measurement accuracy	±5mV
Intensity of Buzzer Sound	85dB
