EGODRIFT Tengu 4530HS 510kV 12-14S Motor

412,00 €
Bruttopreis

EGODRIFT Tengu 4530HS 510kV 12-14S Motor

Menge
72h Stock

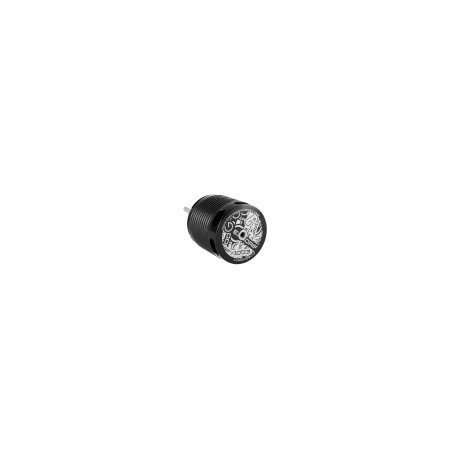

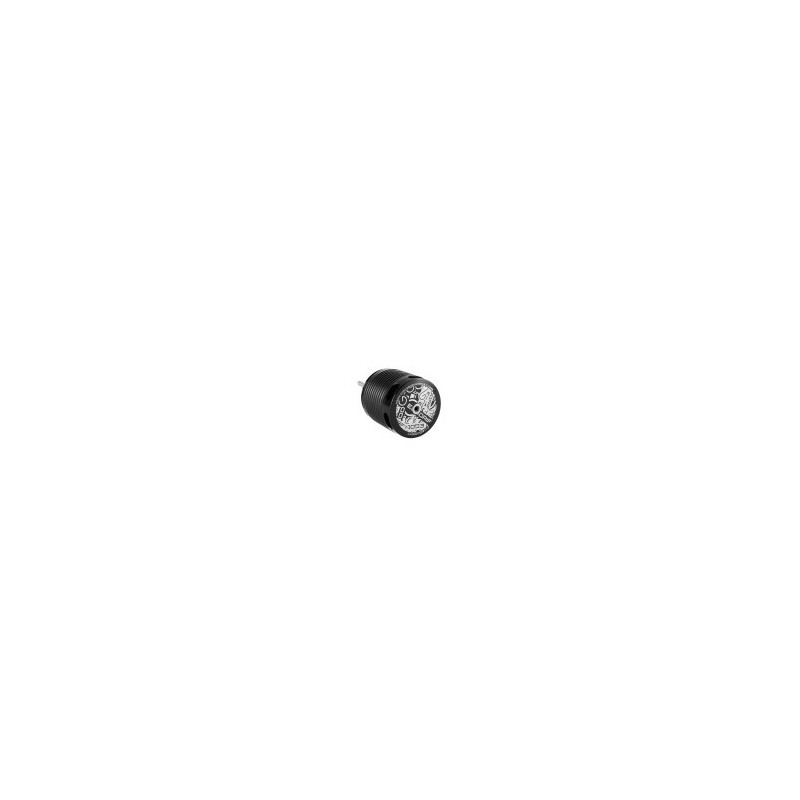

Hand-wound EGODRIFT Tengu 4530/510kV brushless motor for 700-800mm class helicopters, such as the XLPower Spectre, SAB Goblin 700-770, Quest Impaction, Align T-Rex 700-800, Mikado Logo 700, or Gaui 700.

Please select the correct external shaft length below:
35mm fits XLPower and SAB Goblin models.
55mm fits Align, Mikado and Gaui models.

Note: The longer shaft with 55mm (exterior) length is also available as spare part.

Specifications

  • Manufacturer: EGODRIFT
  • Stator size: 4530
  • Motor configuration: 12N10P
  • Motor weight: 525g (17.25oz)
  • Base Colour: Black
  • Wire colour: Copper
  • Motor wire type: High temperature copper wire
  • Motor wire: 1.35mm
  • Motor shaft: Hardened Steel
  • Shaft diameter: 6.0 mm
  • LiPo cells: 12S, 14S
  • Motor kV: 510 kV
  • Stator diameter: 45 mm
  • Stator height: 30 mm
  • Stator lamination: 0.15 mm (+)
  • Body Length: 60.58mm (2.39 inch)
  • Diameter: 56.40 mm (2.22 inch)
  • Screw hole diameter: 4,0 mm
  • Motor hole pattern: 30mm
  • Idle current: 3.7A
  • Maximum Current: 120A (Peak: 230A / 2 seconds)
  • Maximum Power: 6000 W (Peak: 11500W / 2 seconds)
  • Internal resistance: 12 mOhm
  • Connection: Wire / Gold plated plugs
  • Designer: Yutao Zou
4530HS-510
